my prusa mini has been gathering dust because i coudint get the zhight working.

turns out everything was working it was the test i was using made it super frustraing to test zheight settings.

heres the winner!

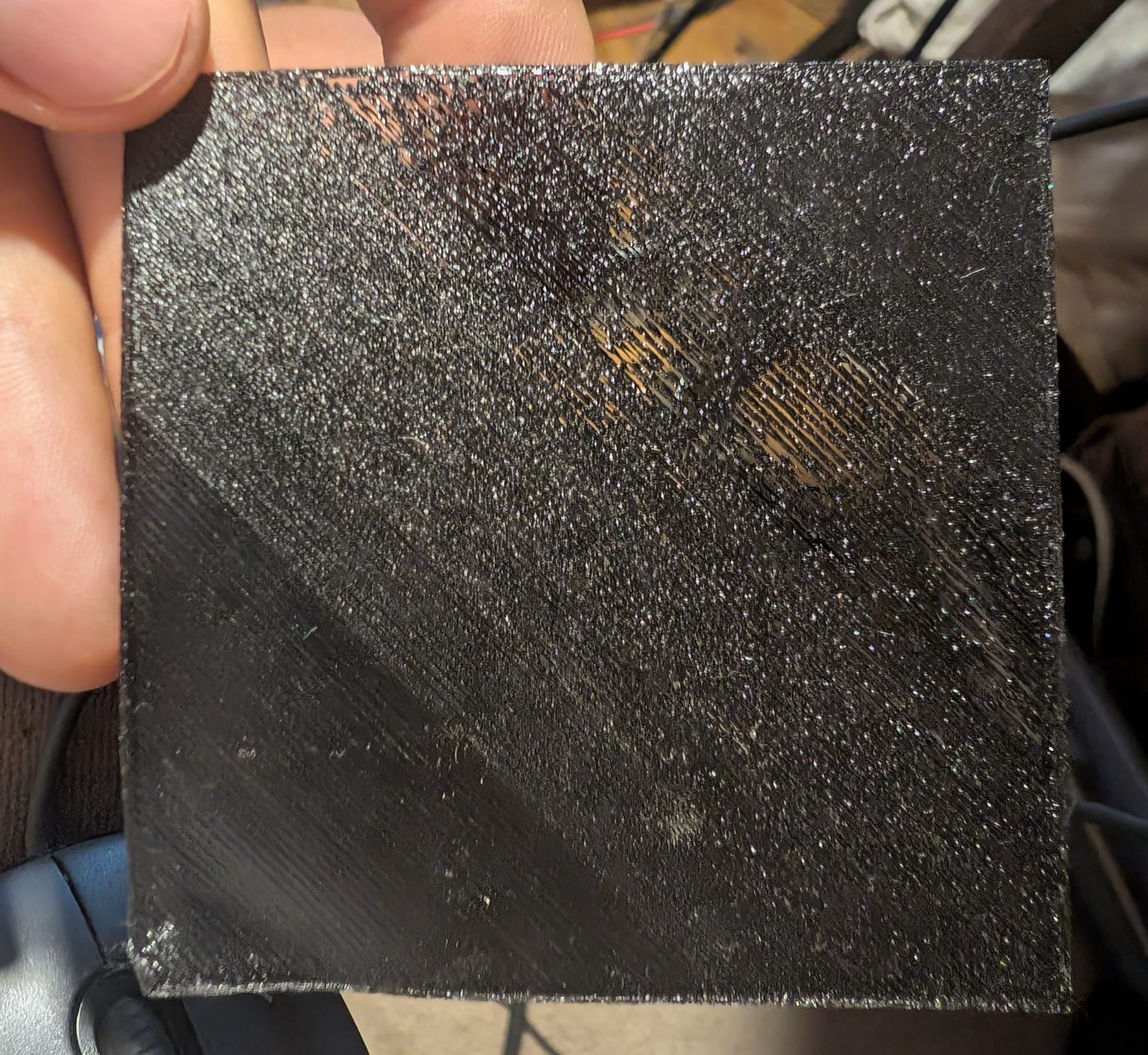

https://www.printables.com/model/1508820-z-adjustment-square/files

i used the PLA

The zheight was way easier to adjust because there was more time to compare against old one. vs running multiple tests

thank you jeff jordan 🫡

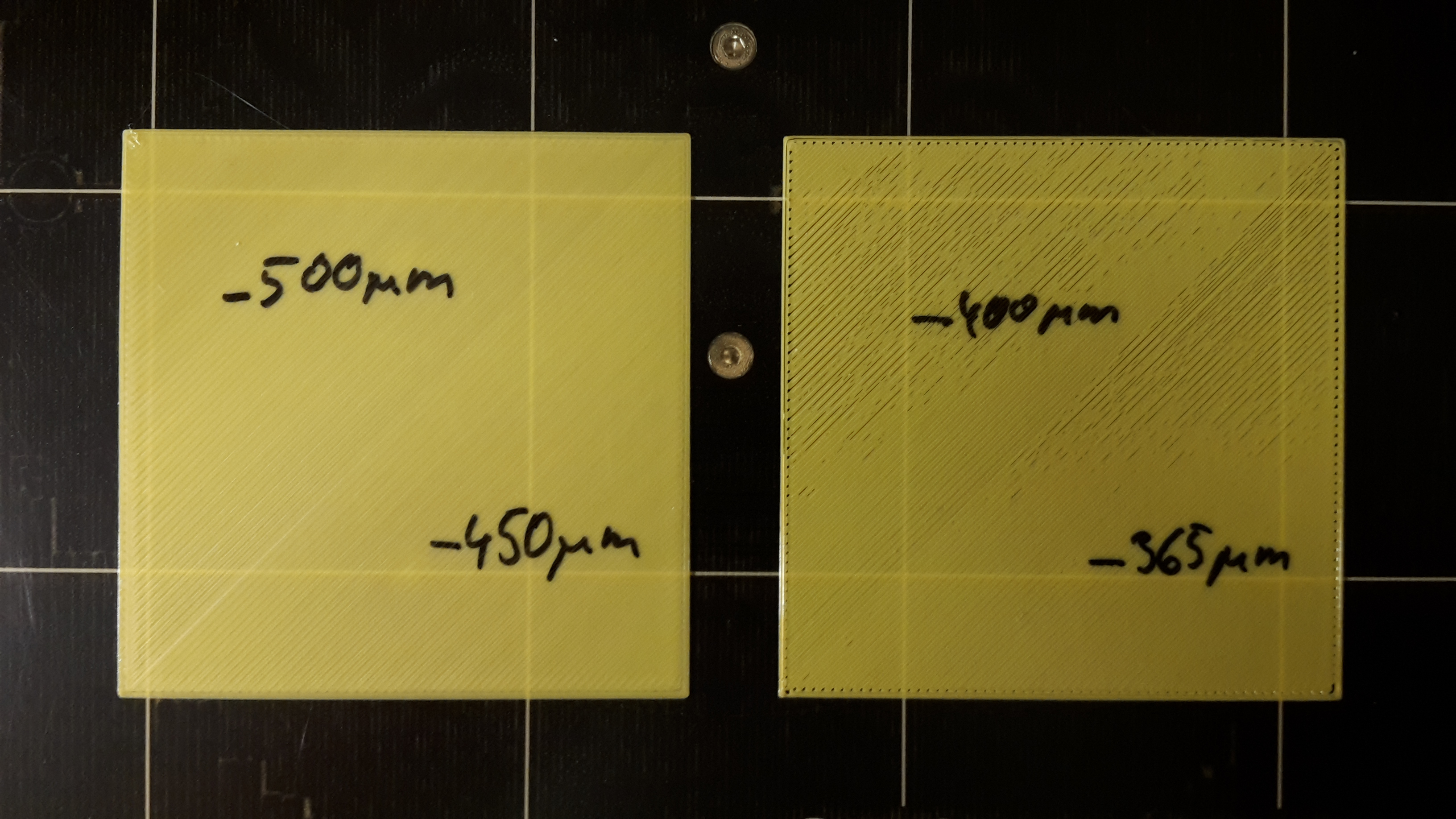

life adjust Z - my way

hi communityjust want to share with you my way of finding the right correction value for the life Z adjustment.just in case that somebody still tries…

Original Prusa 3D PrintersJeffJordan

now its working great!

printer settings for orans future self

current zhight
20260615 -0.485
20260615 -0.365 actually grea
20260615 -0.200 still ass but better
20260615 -0.00 ass

20260615 -0.250 much better but still ass

20260615 -0.300 has some spotting but is ok (lets try a benchy)
20260615 -0.350 looks same as 300
20260615 -0.400 looks good (im supprised my old shitty method worked at all
20260615 -0.450 WOW HUGE CHANGE no bubbling
20260615 -0.425 cant tell


final verdict stick with -.425 good smooth stuff




ask:
why isnt it sticking
does the screws cause a issue if fucked with?
assumptions
	zhight is bad

learning
- its really crackly i assume its water
- i cleaned really good with water soap and iso
- using Jeff jordan z life adjustment method so much BETTER! than standard zhight adjust

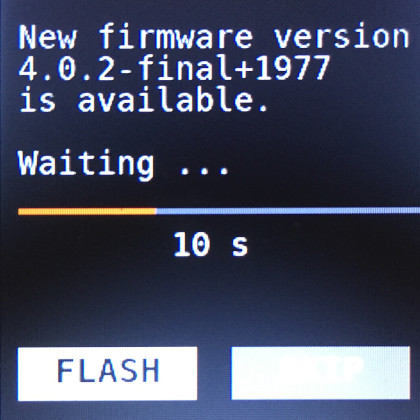

updated the prusa mini to have 4.4.1 beacuse they changed the bootloader, to 2.0.2. now updating to 6.4.2
now bootloader is 2.5.0

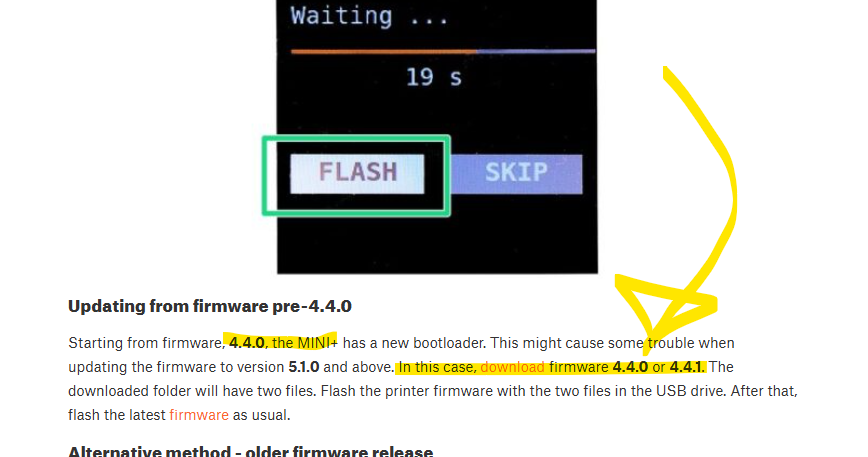

also note when updating your prusa mini follow the guide from prusa. NOTE dont blindly update to 4.4.1 firmware first! then update to latest

source:

Firmware updating (MINI/MINI+) | Prusa Knowledge Base

On the MINI you flash the firmware using a USB flash drive. Download the Zip file for the firmware and extract it on your computer. Copy the .bbf file in your chosen language to the root directory of a USB flash drive (Not within a folder). All file…

Prusa Knowledge Base

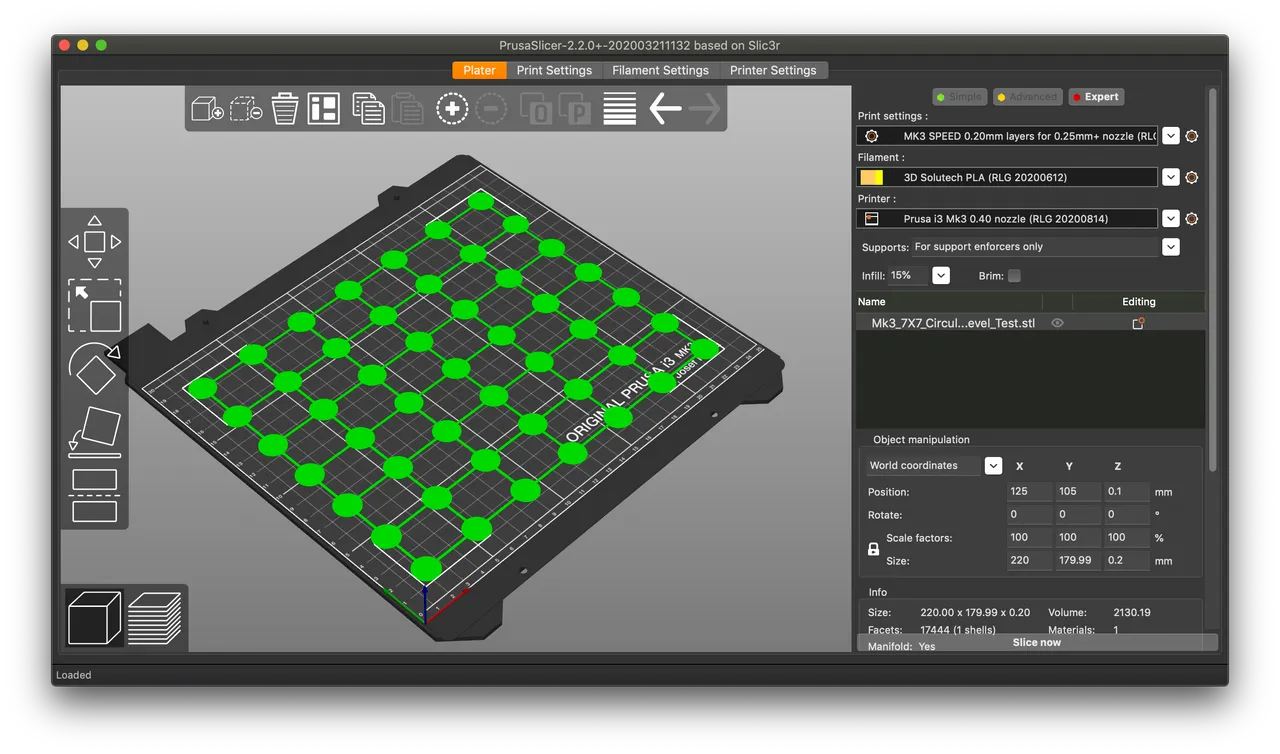

bonus cool parametic bed level test generator

https://www.printables.com/model/1618564-original-3dbenchy-public-domain-cad-step-file/files
